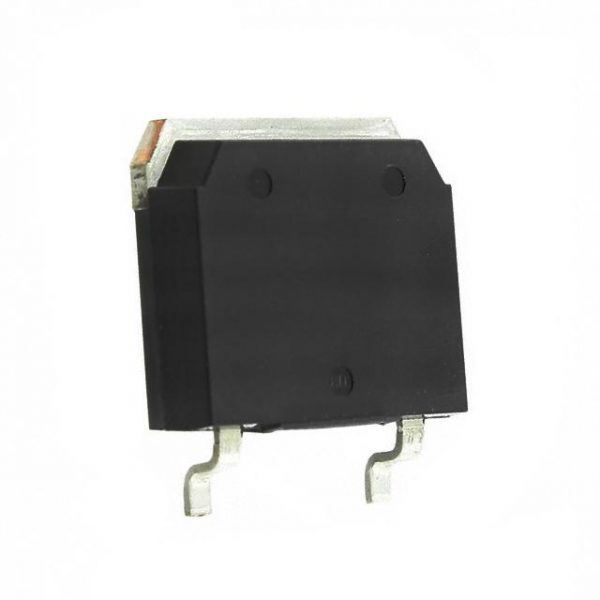

IXGT50N60B

Part Number	IXGT50N60B
Description	IGBT 600V 75A 300W TO268
Category	Discrete Semiconductor Products
Manufacturer	IXYS Corporation
In Stock	13870
Datasheet	Download

Category: Discrete Semiconductor Products

Description

Description

Manufacturer	IXYS Corporation
Lead / RoHS Status	Lead free / RoHS Compliant
Voltage – Collector Emitter	600V
Vce(on) (Max) @ Vge, Ic	2.3V @ 15V, 50A
Test Condition	480V, 50A, 2.7 Ohm, 15V
Td (on/off) @ 25°C	50ns/150ns
Switching Energy	3mJ (off)
Supplier Device Package	TO-268
Series	HiPerFAST
Power – Max	300W
Packaging	Tube
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Moisture Sensitivity Level	1 (Unlimited)
Input Type	Standard
Gate Charge	160nC
Detailed Description	IGBT 600V 75A 300W Surface Mount TO-268
Current – Collector Pulsed	200A
Current – Collector (Ic) (Max)	75A
Base Part Number	IXG*50N60
