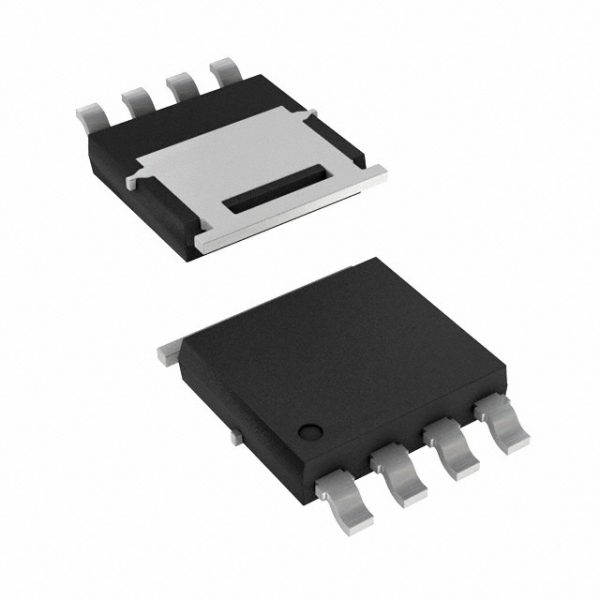

SIJ484DP-T1-GE3

Part Number	SIJ484DP-T1-GE3
Description	MOSFET N-CH 30V 35A PPAK SO-8
Category	Discrete Semiconductor Products
Manufacturer	Electro-Films (EFI) / Vishay
In Stock	8336
Datasheet	Download

Part Number

Description

Manufacturer	Electro-Films (EFI) / Vishay
Lead / RoHS Status	Lead free / RoHS Compliant
Vgs(th) (Max) @ Id	2.5V @ 250µA
Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)
Supplier Device Package	PowerPAK® SO-8
Series	TrenchFET®
Rds On (Max) @ Id, Vgs	6.3 mOhm @ 10A, 10V
Power Dissipation (Max)	5W (Ta), 27.7W (Tc)
Packaging	Tape & Reel (TR)
Package / Case	PowerPAK® SO-8
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Moisture Sensitivity Level	1 (Unlimited)
Input Capacitance @ Vds	1600pF @ 15V
Gate Charge (Qg) (Max) @ Vgs	45nC @ 10V
FET Type	N-Channel
Drive Voltage (Max/Min Rds)	4.5V, 10V
Drain to Source Voltage (Vdss)	30V
Detailed Description	N-Channel 30V 35A (Tc) 5W (Ta), 27.7W (Tc) Surface Mount PowerPAK® SO-8
Current – Drain (Id) @ 25°C	35A (Tc)
