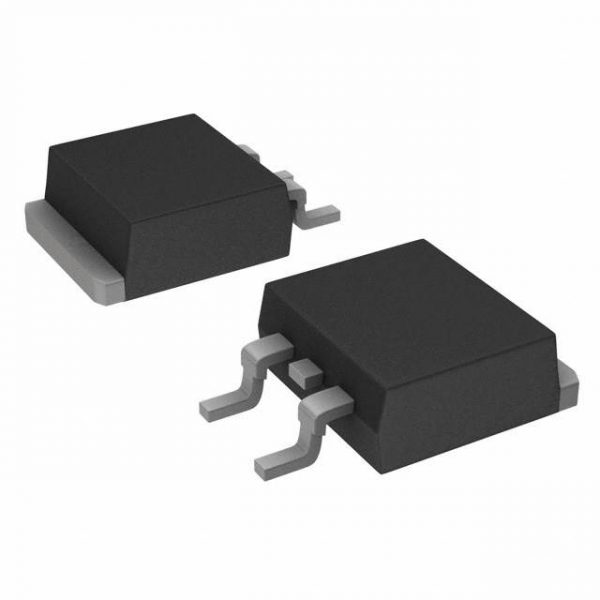

SPB35N10T
| Part Number | SPB35N10T |
|---|---|
| Description | MOSFET N-CH 100V 35A D2PAK |
| Category | Discrete Semiconductor Products |
| Manufacturer | International Rectifier (Infineon Technologies) |
| In Stock | 10708 |
| Datasheet | Download |
Description
| Manufacturer | International Rectifier (Infineon Technologies) |
|---|---|
| Lead / RoHS Status | Lead free / RoHS Compliant |
| Vgs(th) (Max) @ Id | 4V @ 83µA |
| Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PG-TO263-3-2 |
| Series | SIPMOS® |
| Rds On (Max) @ Id, Vgs | 44 mOhm @ 26.4A, 10V |
| Power Dissipation (Max) | 150W (Tc) |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Other Names | SP000013627 |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level | 1 (Unlimited) |
| Input Capacitance @ Vds | 1570pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 65nC @ 10V |
| FET Type | N-Channel |
| Drive Voltage (Max/Min Rds) | 10V |
| Drain to Source Voltage (Vdss) | 100V |
| Detailed Description | N-Channel 100V 35A (Tc) 150W (Tc) Surface Mount PG-TO263-3-2 |
| Current – Drain (Id) @ 25°C | 35A (Tc) |
